Handheld Cameras

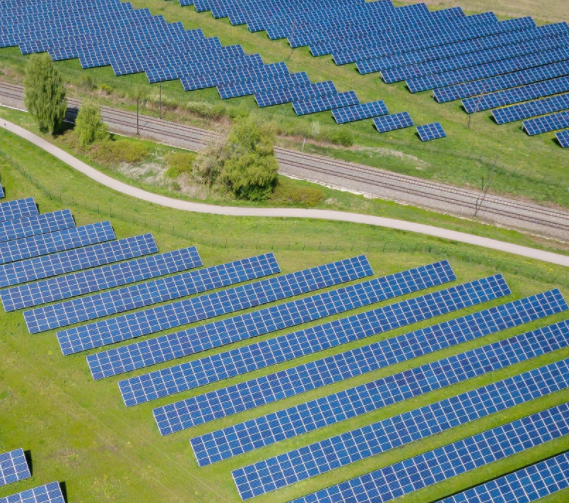

⚠️ Handheld cameras are not recommended for utility-scale PV systems, as the the lack of distinctive landmarks will result in gaps in coverage and make automated analysis difficult. Handheld cameras are also not recommended for fixed-wing aircraft, as motion blur will occur, and the minimum required flight speed does not provide sufficient time for a human to focus and trigger the shutter.



Handheld Camera Models
Despite drawbacks with handheld cameras, two recommended handheld thermal cameras are the FLIR T1020 and the Fluke TiX580. Both cameras are in the long-wave infrared (LWIR) spectral range, and inspections can be done to IEC TS 62446-3:201 compliance with a tight data capture protocol.



Specification

FLIR T1020

Fluke TiX580

Spectrum

7.5–14 μm (long-wave IR)

7.5–14 μm (long-wave IR)

Lens Configuration

12° (83.4 mm lens)

4x telephoto

Radiometric Thermal Resolution

1024 × 768

640 × 480

Artificial Resolution Enhancement

2048 × 1536 UltraMax®

1280 × 960 SuperResolution

Helicopter Max Altitude for IEC Compliance

145 m (476 ft)

129 m (423 ft)



Configuration for a FLIR T1020 to achieve IEC-compliant 3.0 cm/pixel.  Source: flir.comConfiguration for a FLIR T1020 to achieve IEC-compliant 3.0 cm/pixel.  Source: flir.com

Configuration for a FLIR T1020 to achieve IEC-compliant 3.0 cm/pixel. Source: flir.com



Configuration for a Fluke TiX580 to achieve IEC-compliant 3.0 cm/pixel.  Source: fluke.comConfiguration for a Fluke TiX580 to achieve IEC-compliant 3.0 cm/pixel.  Source: fluke.com

Configuration for a Fluke TiX580 to achieve IEC-compliant 3.0 cm/pixel. Source: fluke.com



Aircraft-Mounted Cameras

Historical Use of MWIR
Mid-wave infrared (MWIR) thermal cameras have historically been utilized for manned aircraft inspections of solar PV systems. Defects can be visualized, however these thermal cameras are not IEC compliant. Per the IEC, “Cameras operating in wavelength range of 2 µm to 5 µm shall only be used for thermography of electrical BOS components, e.g. fuses. Due to the transparency of glass in the range of 3 µm the use of that range on PV modules can lead to measurement errors.” As seen in the table below, the most popular models for PV system inspection fall within this spectral range.



Comparison to Drone Sensors
MWIR thermal cameras have historically been used due to low integration times. By relaxing the standards on the type of light that can enter the camera, more light can be collected in a shorter amount of time, which prevents the image from blurring. Manned fixed-wing aircraft are required to maintain significant margin above the stall speed — the speed at which there is significant loss of lift. In contrast, drone-based cameras have a 46% longer integration time, but fly much slower over the PV system. Integration times that are too short relative to the amount of light suffer from image degradation (e.g., a grainy photograph taken at night).





Considerations for Uncooled Cameras
In order to achieve these lower integration times, the MWIR sensors must be cooled, which contributes to the size, weight and power (SWaP) needed, resulting in a larger camera system. Although increased sensitivity can be an advantage of a cooled system, there are several reasons why uncooled thermal cameras can be advantageous:

  • Far distance to target. A drone is extremely close to the PV module target, while a manned aircraft is much farther away. The distortion due to the atmosphere outweighs the benefits of cryocooling. Cryocooling is advantageous for tightly controlled benchtop scenarios (e.g., thermal imaging of microchips).
  • Lack of correction factors. Aerial thermography using manned aircraft does not typically make use of instantaneous, on-site plane of array (POA) measurements or correct for ambient temperature and humidity. The sensitivity to these correction factors is several orders of magnitude higher than the effect of cooled vs. uncooled sensors.
  • Exceeds warranty requirements by 3 orders of magnitude. The stated sensitivity of the most popular drone-based LWIR cameras is ≤50 mK, while the cooled MWIR sensor sensitivities are ≤30 mK and ≤45 mK, respectively. This is a difference 0.005 °C, which is negligible when compared to typical module manufacturer warranty thresholds of 20-40 °C temperature delta, depending on the defect modality.



Aircraft-Mounted Camera Models
FLIR, one of the large thermal imaging companies, recently released a new line of Strained Layer Superlattice (SLS) cameras. The SLS cameras combine long-wave infrared (LWIR) imaging, one of the requirements for IEC-compliant inspections, with long lenses (50–⁠200 mm focal length), which enables sensors to be farther away from solar PV modules (i.e., a safe altitude for aircraft). It’s recommended that customers require access to the original data, including metadata, to verify the data capture setup used.

Common camera sensors for manned aircraft are summarized in the table below. Other sensors may be acceptable but must meet resolution, metadata and image type requirements including radiometric thermal images.

Some of the common thermal cameras include: A6780 MWIR, A8580 MWIR, A6780 SLS (LWIR), A8580 SLS (LWIR)



A6780 MWIR

A8580 MWIR

A6780 SLS (LWIR)

A8580 SLS (LWIR)

IEC-Compliant

No

No

Yes

Yes

Recommended Variant

A6783

A8583

A8583

A8581

Sensor Resolution

640 × 512

1280 × 1024

640 × 512

1280 x 1024

Recommended Lens Options

100 mm, 200 mm

100 mm, 200 mm

50 mm, 100 mm, 200 mm

50 mm, 100 mm, 200 mm

Spectral Response

3.0 – 5.0 μm

3.0–5.0 μm

7.5–12.5 μm

7.5–12.5 μm

Thermal Sensitivity (NETD)

≤20 mK

≤30 mK

≤45 mK

≤45 mK

Integration Time

0.48–8.00 ms

0.48–22.73 ms

0.48–22.73 ms

0.48–22.73 ms

Cooling

Closed-cycle rotary

Linear Sterling cooler

Closed-cycle rotary

Linear Sterling


Comparing the A6000 & A8000 Series
⚠️ The A6000 series has a resolution of 640 × 512, which is equivalent to most thermal imaging systems in drones. However, because manned aircraft are necessarily 5–⁠20 times farther away from solar sites than drones, an “equivalent” resolution on a manned aircraft is less useful in practice. This economical imaging system is only recommended for helicopter-based C&I inspections and utility-scale overview inspections to detect offline strings and larger issues.

The A8000 series has a resolution of 1280 × 1024 and is the preferred thermal imaging system. The field of view is twice as wide as the A6000 series for an equivalent focal length, requiring fewer passes to capture a complete dataset.

The longest focal length lens available for these cameras is 200 mm. The 200 mm lens enables an aircraft to be maximally distant from the target, but the shorter integration time and wider field of view afforded by a 100 mm lens may be preferable to the user. Both are supported but the 100 mm lens is recommended as it offers a good balance between safe distance from the target and easy communication of coverage and flight plan between pilot and data collection specialist.

⚠️ Longer focal length results in a zoomed in image and narrows the field of view. This is a necessary tradeoff for manned aircraft, as the sensor (camera on the airplane) is 500⁠–⁠2,000 feet away from the target (PV module). A 50 mm is acceptable for helicopter-based C&I inspections and overview inspections but will necessitate closer proximity to the site which may be distracting for individuals on the ground.
